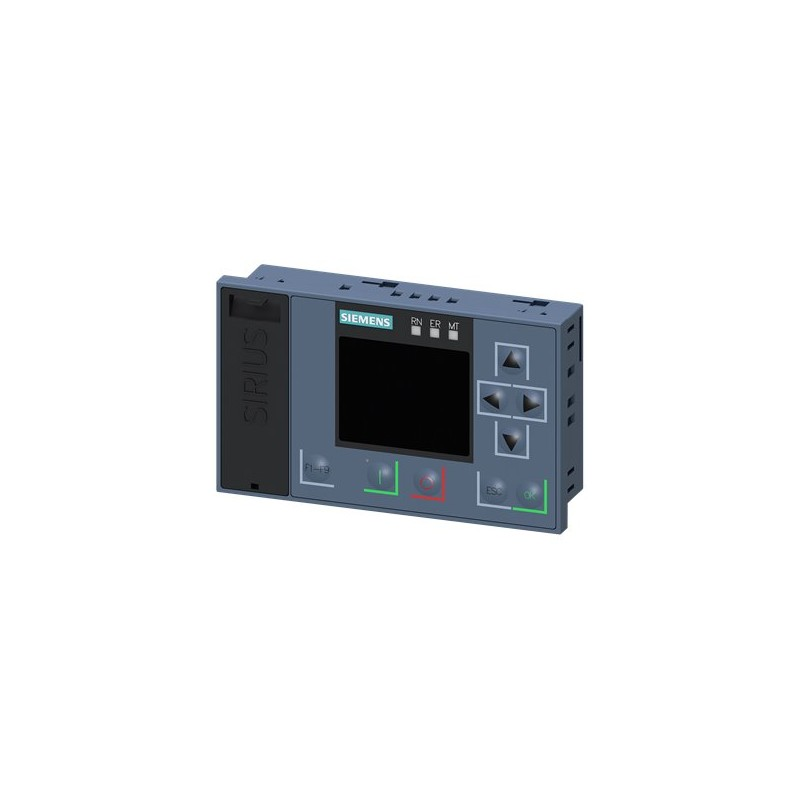

New Siemens 3RW5980-0HF00 SIRIUS 3RW59 High-Feature HMI Module

Product Details

Related Product Model Recommendations

Payment & Delivery

FAQs

Q1: What is the primary function of this module?

The 3RW5980-0HF00 is a High-Feature HMI module that provides local operator interface capabilities for SIRIUS 3RW5 soft starters. It enables on-site parameterization, monitoring, and diagnostics of soft starter functions without requiring external programming tools .

Q2: Which soft starters are compatible with this HMI module?

The 3RW5980-0HF00 is compatible with SIRIUS 3RW50, 3RW51, 3RW52, and 3RW55 series soft starters .

Q3: How is this module mounted?

The module uses snap-on mounting for direct attachment to the soft starter. It is designed for vertical mounting surfaces and can be rotated ±90° and tilted forward or backward ±22.5° for optimal viewing angle .

Q4: What is the difference between the High-Feature (0HF00) and Standard (0HS00) HMI modules?

The High-Feature module (3RW5980-0HF00) offers advanced functionality including enhanced diagnostics, more detailed parameter views, and comprehensive monitoring capabilities. The Standard module (3RW5980-0HS00) provides basic parameterization and monitoring functions .

Q5: Does this module require a separate power supply?

No. The HMI module is powered directly through the soft starter connection. It does not require a separate power supply.
