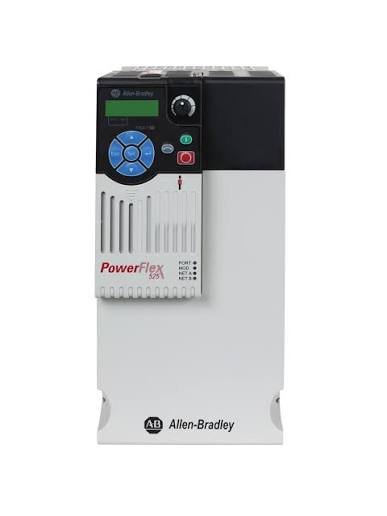

Allen Bradley 25B-D024N104 PowerFlex 525 Frequency AC Drive

The Allen-Bradley 25B-D024N104 is a PowerFlex 525 series adjustable frequency AC drive from Rockwell Automation, designed for industrial motor control applications. Operating on 380–480V AC, 3-phase input, this drive delivers 11 kW (15 HP) output with a rated current of 24 A. It features embedded EtherNet/IP and safety, a modular design with a removable control core, and an integral keypad for easy configuration.

Item nº :
25B-D024N104
Pedido (MOQ) :
1
Pagamento :
EXW
Origem do produto :
USA
Porto de embarque :
Wuhan
Tempo de espera :
3-5days
Peso :
3KG

Product Details

Specification	Description
Manufacturer	Rockwell Automation (Allen-Bradley)
Model	25B-D024N104
Product Family	PowerFlex 525
Product Type	Adjustable Frequency AC Drive (VFD)
Input Voltage	380–480V AC, 3-Phase
Output Power	11 kW / 15 HP (Normal & Heavy Duty)
Output Current	24 A
Output Voltage	0–460V AC
Enclosure Rating	IP20 / NEMA Open Type
Frame Size	Frame D
Control Methods	V/Hz, Sensorless Vector Control (SVC), Closed Loop Velocity Vector, Permanent Magnet Motor Control
Communication	Embedded EtherNet/IP; RS-485 with Modbus RTU/DSI
Safety	Safe Torque-Off (STO) certified at SIL2 / PLd Cat 3
I/O	7 Discrete Inputs; 4 Discrete Outputs; 2 Analog Inputs; 1 Analog Output
User Interface	Integral Keypad with Potentiometer and LED Display
Brake IGBT	Included
Mounting	Panel Mount / DIN Rail; Zero Stacking supported
Operating Temperature	0°C to +50°C (without derating); up to +70°C with derating
Dimensions (W x H x D)	Approx. 130 mm x 260 mm x 212 mm
Weight	Approx. 3.6 kg (8.00 lbs)
Lifecycle Status	Active

Related Product Model Recommendations

Model	Description	Typical Application
25B-D024N104 (this model)	PowerFlex 525, 480V AC, 15 HP, 24A, Frame D, No Filter	Standard motor control with EtherNet/IP
25B-D030N104	PowerFlex 525, higher power rating (30A output)	Applications requiring more current capacity
25B-D017N104	PowerFlex 525, lower power rating (17A output)	Smaller motor applications
25B-D024N114	Same rating with EMC filter (Filtered version)	Installations requiring EMC compliance
20A-D024N104	PowerFlex 520, different series (No embedded EtherNet/IP)	Legacy system replacement

Payment & Delivery

FAQs

Q1: What is the primary function of the 25B-D024N104?

It is a PowerFlex 525 adjustable frequency AC drive used to control the speed and torque of three-phase AC motors. It is commonly used in industrial applications such as conveyors, pumps, mixers, and packaging equipment .

Q2: Does the 25B-D024N104 support EtherNet/IP communication?

Yes. The drive features embedded EtherNet/IP communication, enabling seamless integration with Allen-Bradley PLC and automation systems without requiring additional communication modules .

Q3: What safety functions does this drive include?

The 25B-D024N104 includes Safe Torque-Off (STO) functionality, certified to SIL2 / PLd Category 3 safety standards. This removes rotational power to the motor without removing power from the drive .

Q4: What motor control modes are available?

The drive supports Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed Loop Velocity Vector Control, and Permanent Magnet Motor Control .

Q5: What is the difference between the 25B-D024N104 and the 25B-D024N114?

The primary difference is EMC filtering. The -N104 suffix indicates a non-filtered drive, while the -N114 suffix indicates a drive with an integrated EMC filter for compliance with electromagnetic compatibility standards.
